NPI

Performance characteristics:

1. 6.5% Fe Si alloy with distributed air gap;

2. High saturation flux density;

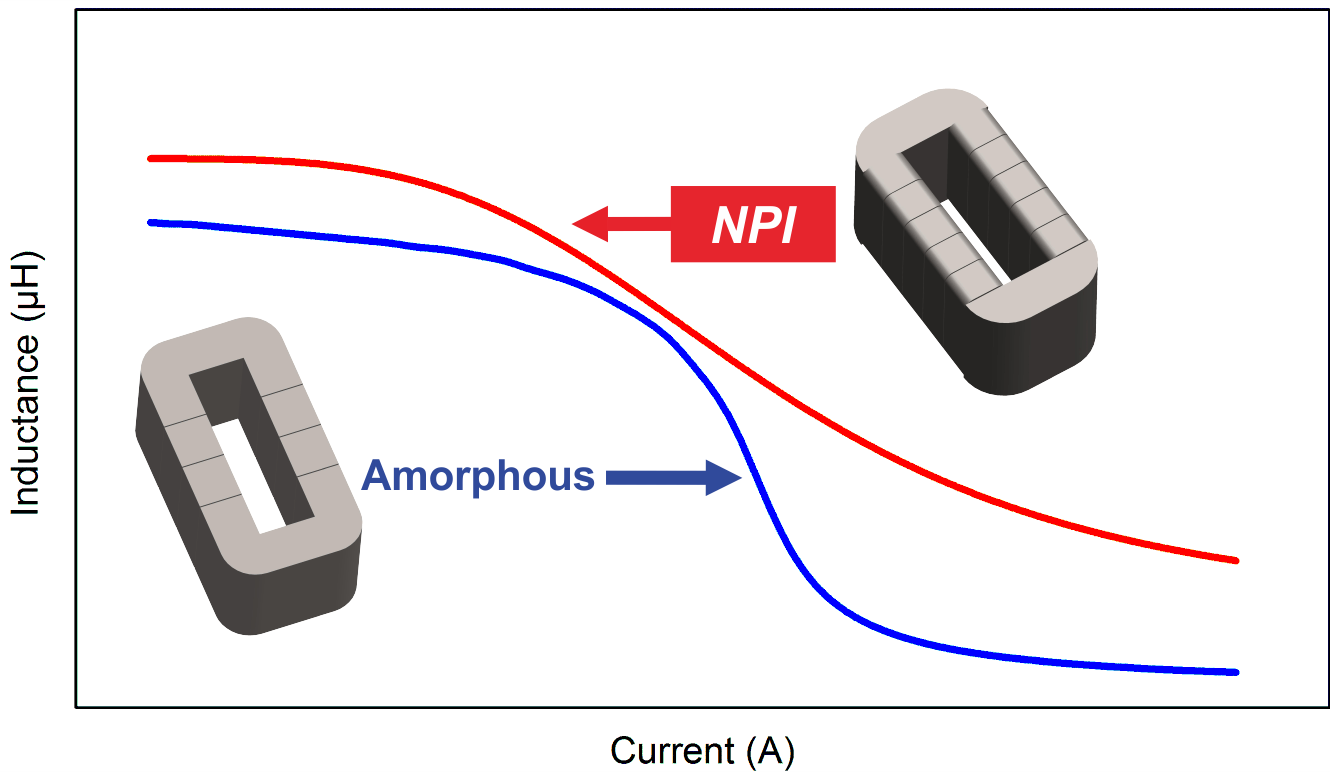

3. Excellent DC bias characteristics;

4. The loss is smaller than that of iron powder core;

5. Good temperature stability.

Application fields:

1. PFC inductance of communication power supply

2. PFC inductance of server power supply

3. PFC inductance of UPS power supply

4. Switch regulator

5. Photovoltaic inverter inductance

6. Output inductance of general industrial power supply

7. Online noise filtering

Specification range: it can be customized according to customer requirements to meet various specification requirements of customers.

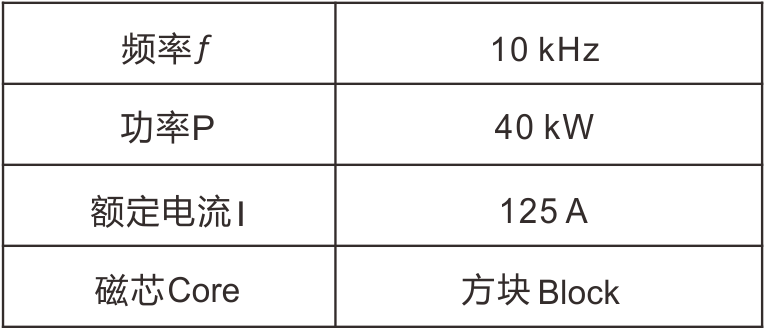

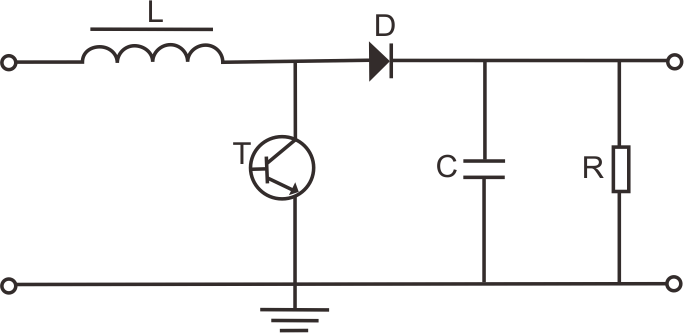

1、Case

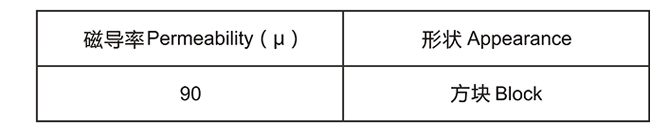

2、Basic information

Notes:All data are provided by POCO testing platforms
