NPH-L

Performance characteristics:

1. Uniform distributed air gap;

2. High saturation flux density (1.0T);

3. Ultra low loss;

4. Low magnetostrictive coefficient;

5. Stable temperature and frequency characteristics;



Application fields:

1. Photovoltaic inverter

2. Server power

3. DC charging pile

4. Frequency conversion air conditioner

5. New energy vehicle

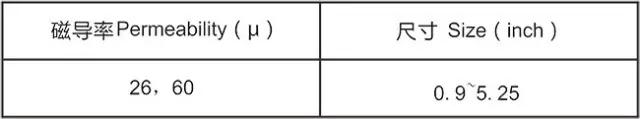

Specification range: it can be customized according to customer requirements to meet various specification requirements of customers.

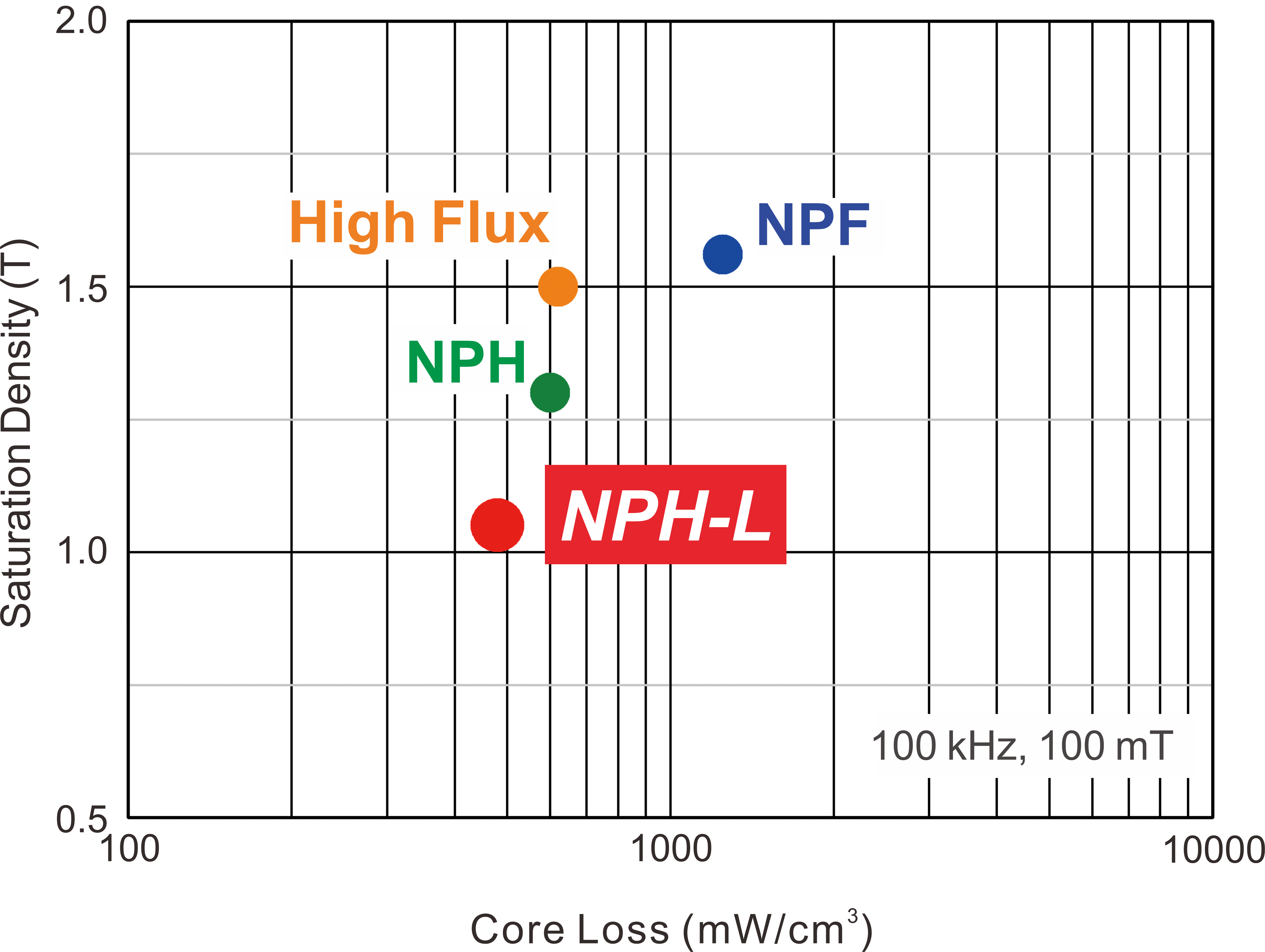

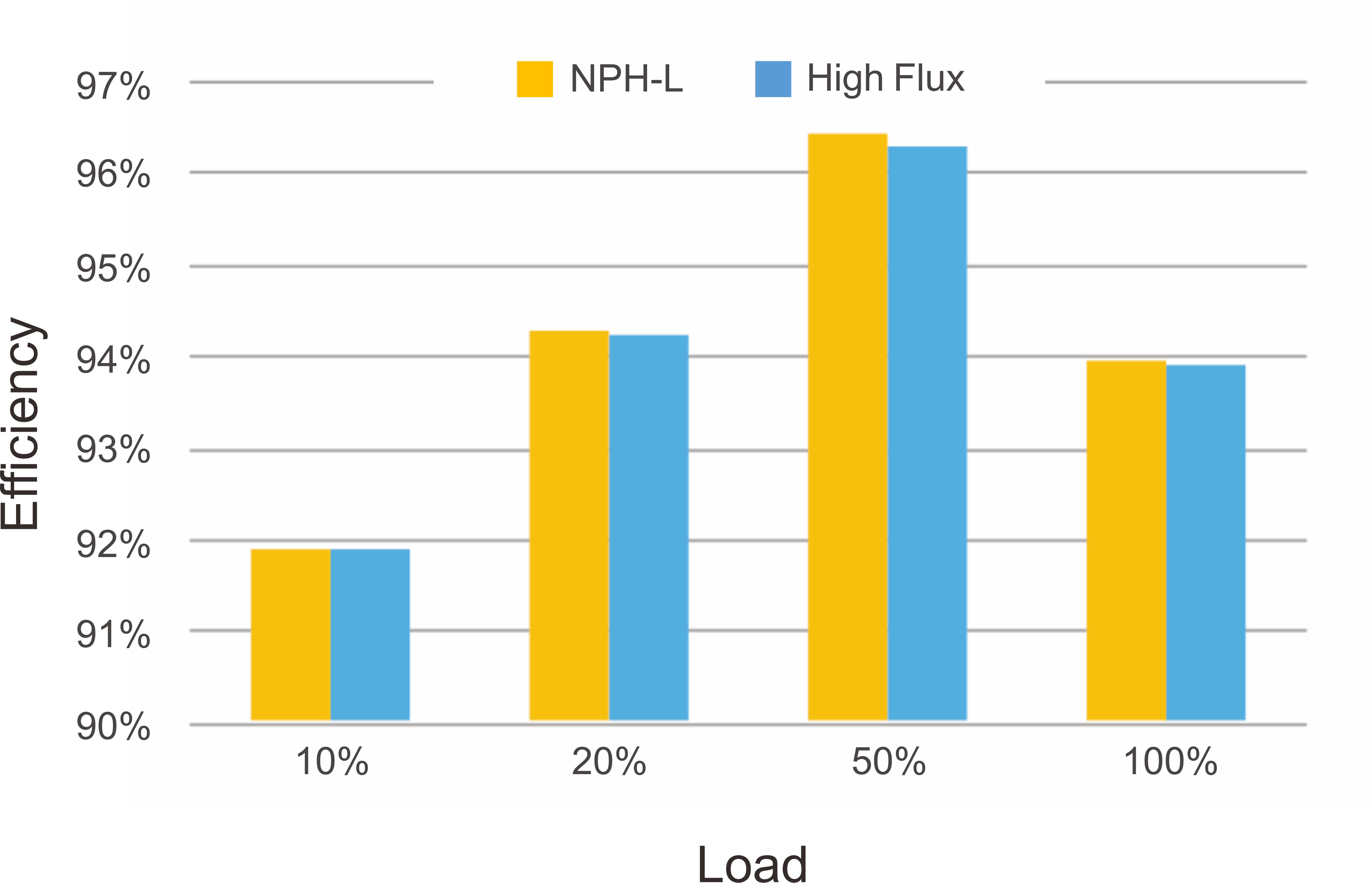

Product performance comparison

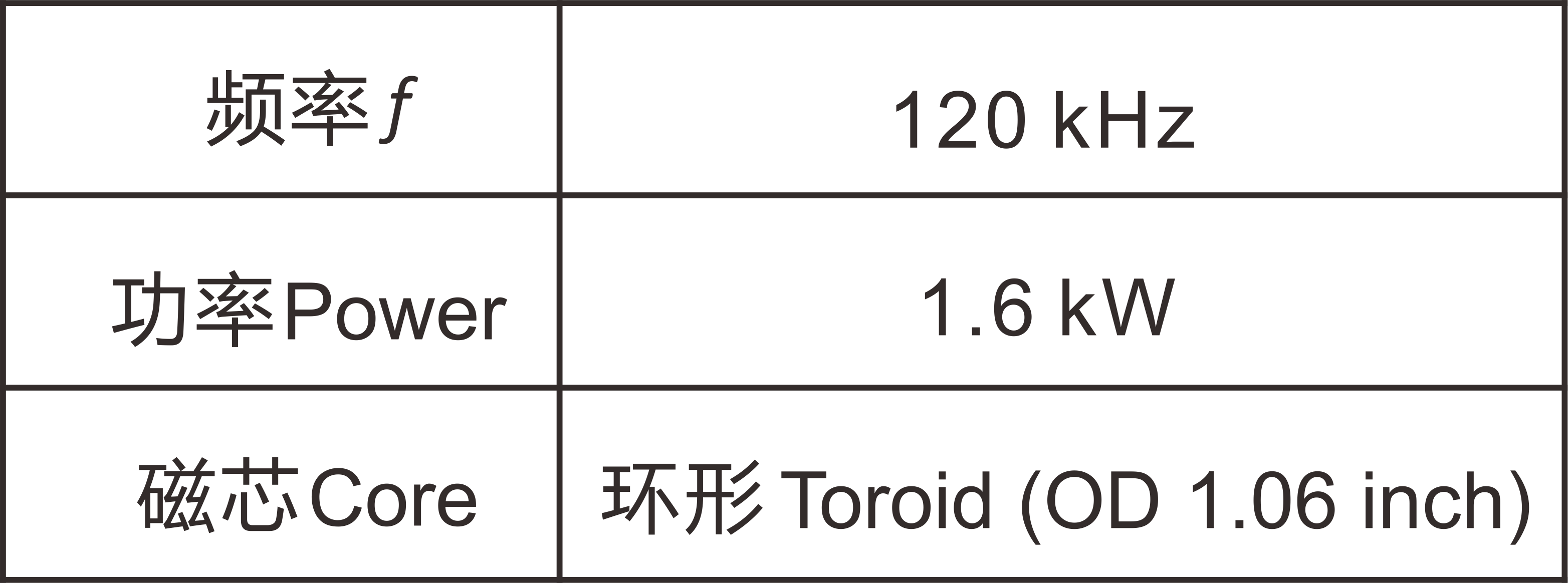

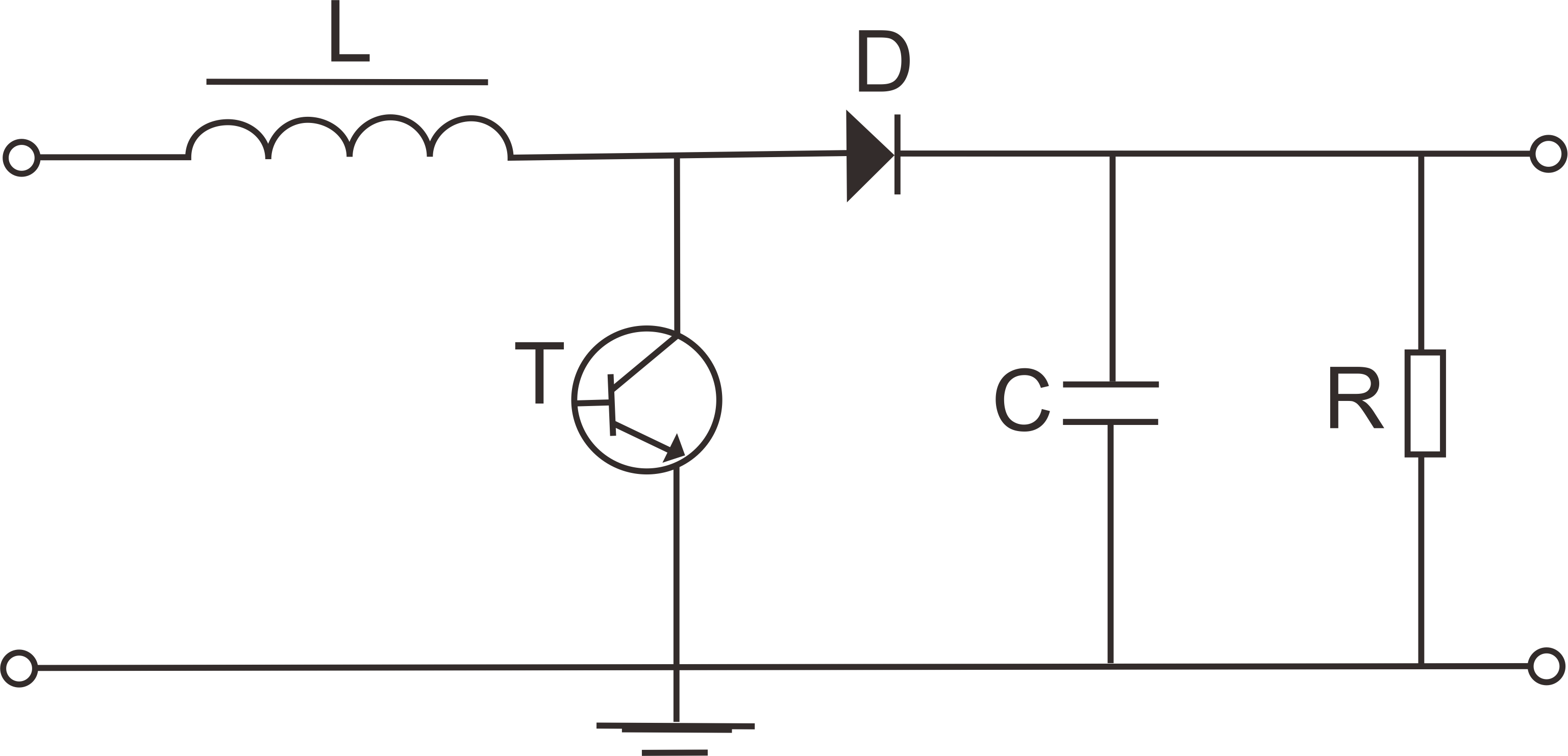

Case





Notes:All data are provided by POCO testing platforms
磁芯料号 电感系数 磁导率 (μ) 裸芯尺寸                涂层磁芯尺寸
外径OD 内径ID 高度HT 外径OD 内径ID 高度HT
(mm/inch) (mm/inch) (mm/inch) (mm/inch) (mm/inch) (mm/inch)
max min max max min max
NPH500060-L 124 60 132.50 78.60 20.30 134.20 77.00 21.70
NPH500026-L 54 26 132.50 78.60 20.30 134.20 77.00 21.70
NPH401060-L 112 60 101.60 57.15 16.51 102.87 55.75 17.78
NPH401026-L 47.4 26 101.60 57.15 16.51 102.87 55.75 17.78
NPH400060-L 92.3 60 101.60 57.15 13.59 102.87 55.75 14.86
NPH400026-L 40 26 101.60 57.15 13.59 102.87 55.75 14.86
NPH306060-L 85 60 77.80 49.23 15.88 78.94 47.96 17.15
NPH306026-L 37 26 77.80 49.23 15.88 78.94 47.96 17.15
NPH300060-L 68 60 77.80 49.23 12.70 78.94 47.96 13.97
NPH300026-L 30 26 77.80 49.23 12.70 78.94 47.96 13.97
NPH250060-L 192 60 62.00 32.60 25.00 63.09 31.37 26.26
NPH250026-L 83 26 62.00 32.60 25.00 63.09 31.37 26.26
NPH226060-L 138 60 57.15 26.39 15.24 58.04 25.58 16.13
NPH226026-L 60 26 57.15 26.39 15.24 58.04 25.58 16.13
NPH225060-L 75 60 57.15 35.56 13.97 58.04 34.75 14.86
NPH225026-L 33 26 57.15 35.56 13.97 58.04 34.75 14.86
NPH200060-L 73 60 50.80 31.75 13.46 51.69 30.94 14.35
NPH200026-L 32 26 50.80 31.75 13.46 51.69 30.94 14.35
NPH185060-L 86 60 46.74 28.70 15.24 47.60 27.89 16.13
NPH185026-L 37 26 46.74 28.70 15.24 47.60 27.89 16.13
NPH184060-L 135 60 46.74 24.13 18.03 47.63 23.32 18.92
NPH184026-L 59 26 46.74 24.13 18.03 47.63 23.32 18.92
NPH158060-L 122 60 40.13 22.08 17.00 40.94 21.27 17.89
NPH158026-L 53 26 40.13 22.08 17.00 40.94 21.27 17.89
NPH157060-L 81 60 39.88 24.13 14.48 40.69 23.32 15.37
NPH157026-L 35 26 39.98 24.13 14.48 40.69 23.32 15.37
NPH135060-L 38 60 34.29 23.37 8.89 35.20 22.60 9.83
NPH135026-L 16 26 34.29 23.37 8.89 35.20 22.60 9.83
NPH131060-L 83 60 33.27 18.00 11.52 34.08 17.36 12.50
NPH131026-L 36 26 33.27 18.00 11.52 34.08 17.36 12.50
NPH130060-L 61 60 33.02 19.94 10.67 33.83 19.30 11.61
NPH130026-L 28 26 33.02 19.94 10.67 33.83 19.30 11.61
NPH107060-L 105 60 28.25 13.10 12.05 29.05 12.47 13.00
NPH107026-L 46 26 28.25 13.10 12.05 29.05 12.47 13.00
NPH106060-L 75 60 26.92 14.73 11.18 27.70 14.10 11.99
NPH106026-L 32 26 26.92 14.73 11.18 27.70 14.10 11.99
NPH092060-L 51 60 23.57 14.40 8.89 24.28 13.77 9.70
NPH092026-L 22 26 23.57 14.40 8.89 24.28 13.77 9.70
NPH090060-L 43 60 22.86 13.97 7.62 23.62 13.39 8.38
NPH090026-L 19 26 22.86 13.97 7.62 23.62 13.39 8.38
